How to clean install Windows Server 2025 with Desktop Experience

• Windows Server 2025 supports two installation options: Desktop Experience and Server Core.
• Desktop Experience offers a full graphical interface, while Server Core focuses on security, performance, and reduced resource usage.
• You cannot switch between Desktop Experience and Server Core after installation without reinstalling Windows Server.
• The guide covers system requirements, bootable USB creation with Rufus, and the complete installation process.

On Windows Server 2025, you can perform a clean installation using one of two installation options, including Server with Desktop Experience or Server Core. In this guide, I’ll outline the steps to set up an installation using the Desktop Experience.

The Desktop Experience option provides a full graphical interface, similar to a traditional Windows desktop. This allows you to manage the system using a mouse and keyboard, access familiar administrative tools, and install supported GUI-based applications. It’s generally preferred in environments where ease of management and compatibility with legacy tools are important, although it comes with higher system resource usage.

In contrast, Server Core installs a minimal environment without a full graphical shell. Administration is primarily done through PowerShell or Command Prompt, making it a leaner and more secure option due to its reduced attack surface and lower resource consumption. While it lacks a full desktop interface, some graphical management tools can still be accessed remotely or through specific MMC snap-ins when needed.

Server Core is typically used for infrastructure roles where stability, performance, and security are priorities, such as domain controllers, DNS, DHCP, or headless application servers. Desktop Experience, on the other hand, is better suited for scenarios where local management and broader application support are required.

This guide will teach you the steps to perform a clean install of Windows Server 2025 with the desktop or core experience.

• System requirements for Windows Server 2025
• Create Windows Server 2025 bootable USB media
• Clean install Windows Server 2025 with Desktop Experience
• Server Decode’s Take

System requirements for Windows Server 2025

These are the minimum system requirements to install the server version of Windows:

• Processor
  • 1.4 GHz 64-bit processor.
  • Compatible with the x64 instruction set.
  • Supports NX (No-eXecute) and DEP (Data Execution Prevention).
  • Supports CMPXCHG16b, LAHF/SAHF, and PrefetchW instructions.
  • Supports Second Level Address Translation (SLAT) such as Intel EPT or AMD NPT.
  • Supports SSE4.2 (Streaming SIMD Extensions 4.2).
  • Supports POPCNT instruction.
  • Multi-core and larger cache processors are recommended for production workloads.
• Memory
  • 2 GB minimum for Server Core.
  • 2 GB minimum for Server with Desktop Experience (4 GB recommended).
  • ECC (Error-Correcting Code) memory or equivalent is required for physical host deployments
• Storage
  • Minimum 32 GB of available disk space for the system partition.
  • PCI Express–compliant storage adapter required.
  • IDE, ATA, PATA, and EIDE are not supported for boot, page, or data drives.
• Network
  • Ethernet adapter with at least 1 Gbps throughput.
  • PCI Express–compliant network adapter required.
  • PXE (Preboot Execution Environment) support is recommended for deployment.
  • Support for KDNet (kernel debugging over network) is recommended for troubleshooting.

Other requirements include UEFI 2.3.1c or later and firmware with Secure Boot. Trusted Platform Module (TPM) to use features like BitLocker.

Create Windows Server 2025 bootable USB media

To create a bootable USB with Rufus for Windows Server 2025, use these steps:

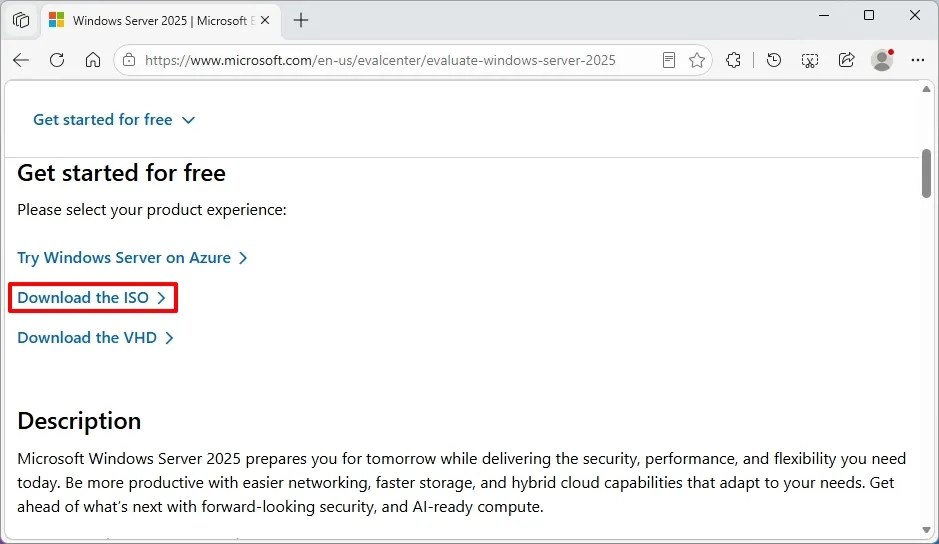

1. Open the Windows Server 2025 download page.

2. Click the “Download the ISO” link.



3. Use the form to register and download the ISO file.

4. Click the Download now button.

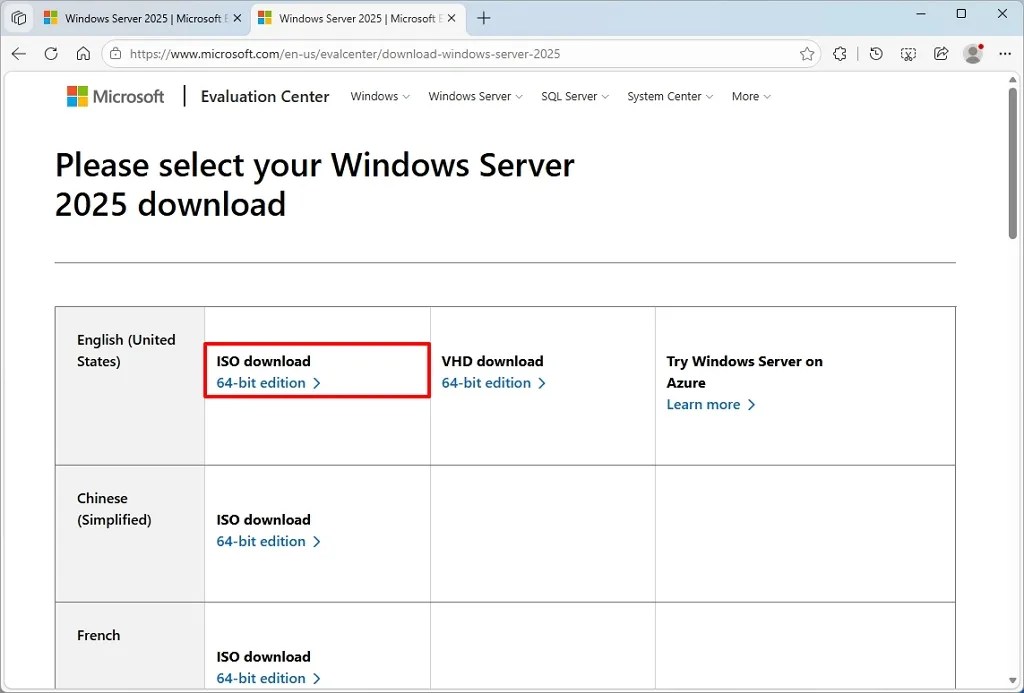

5. Click the “ISO downloads 64-bit edition” option to download the file.



6. Open the Rufus website.

7. Click the link to download the latest version under the “Download” section.

8. Double-click the rufus.3.xx.exe file to launch the tool.

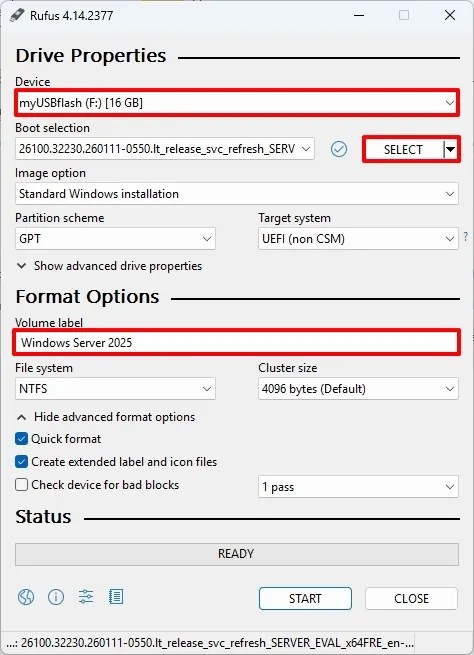

9. Select the USB flash drive to create the bootable media under the “Device” section.

10. Select the “Disk or ISO image” option under the “Boot selection” section.

11. Click the Select button.



12. Select the “Windows Server 2025 ISO” file.

13. Click the Open button.

14. Select the “Standard Windows Installation” option under the “Image option” setting.

15. Select the GPT option under the “Partition scheme” section.

16. Select the UEFI (non-CSM) option under the “Target system” section.

17. Under the “Volume label” section, confirm a name for the USB flash drive. For example, “Server 2025 USB.”

18. Use the default settings for the File system and Cluster size options.

19. Check the Quick format option.

20. Check the “Create extended label and icon files” option.

21. Click the Start button.

22. Clear the “Customize Windows installation” settings.

23. Click the OK button.

24. Click the OK button again.

Once you complete the steps, you can proceed to install the server version of Windows on the device.

Clean install Windows Server 2025 with Desktop Experience

To perform a clean install of Windows Server 2025 from a USB, follow these steps:

1. Start the server with the Windows Server 2025 USB flash drive.

2. Press any key to continue.

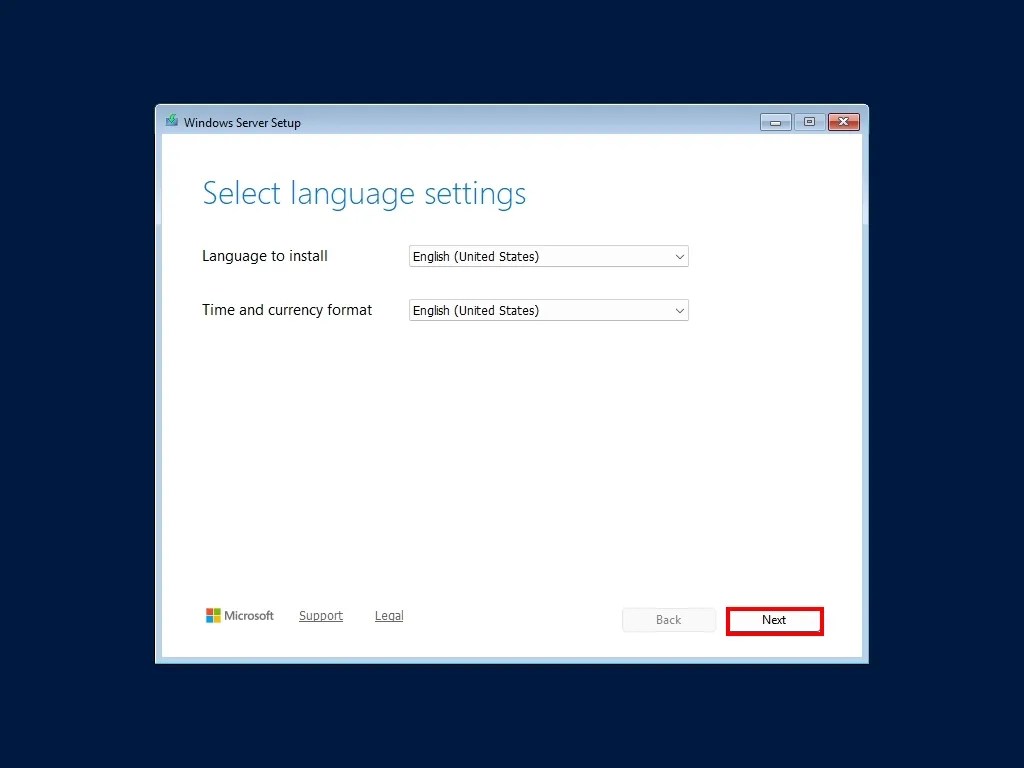

3. Choose your language settings (if applicable).

4. Click the Next button.

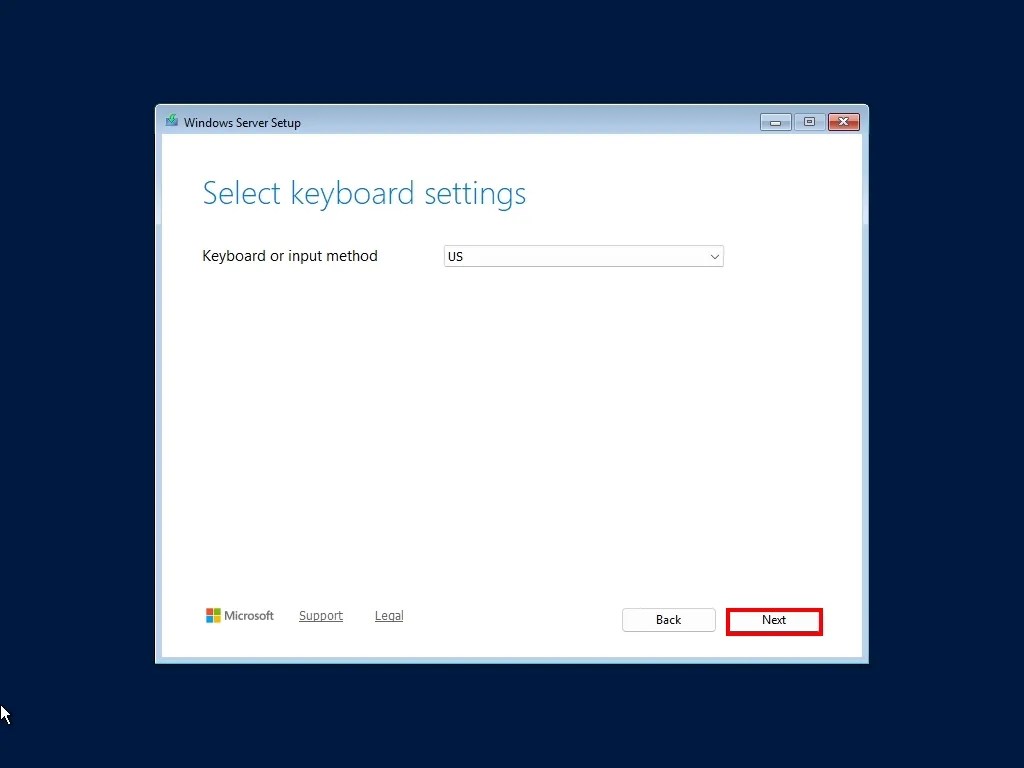

5. Select the keyboard settings (if applicable).

6. Click the Next button.

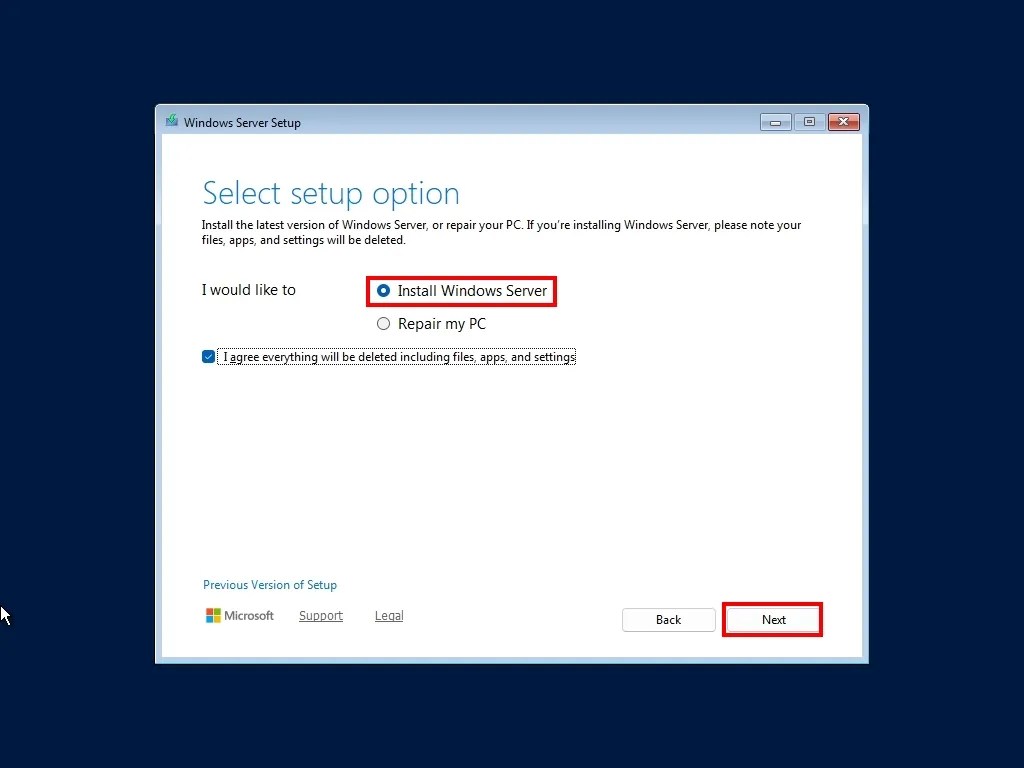

7. Select the “Install Windows Server” option.



8. Check the option to agree to delete files, apps, and settings from the device.

9. Click the Next button.

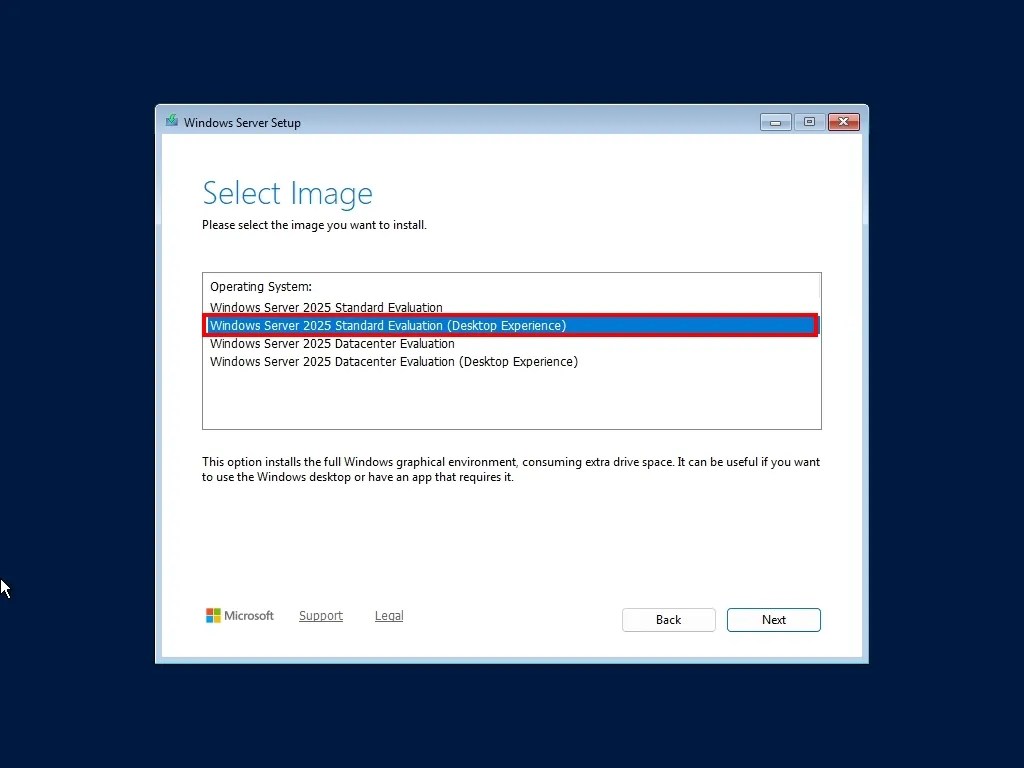

10. Select the “Windows Server 2025 Standard Evaluation (Dekstop Experience)” option.



    Quick note: After the installation, you cannot change from “Core” to “Desktop Experience” or vice versa, so choose this option carefully. If you select the “Core” experience and then switch to the “Desktop Experience,” you will need to reinstall the operating system.

11. Click the Next button.

12. Click the Accept button.

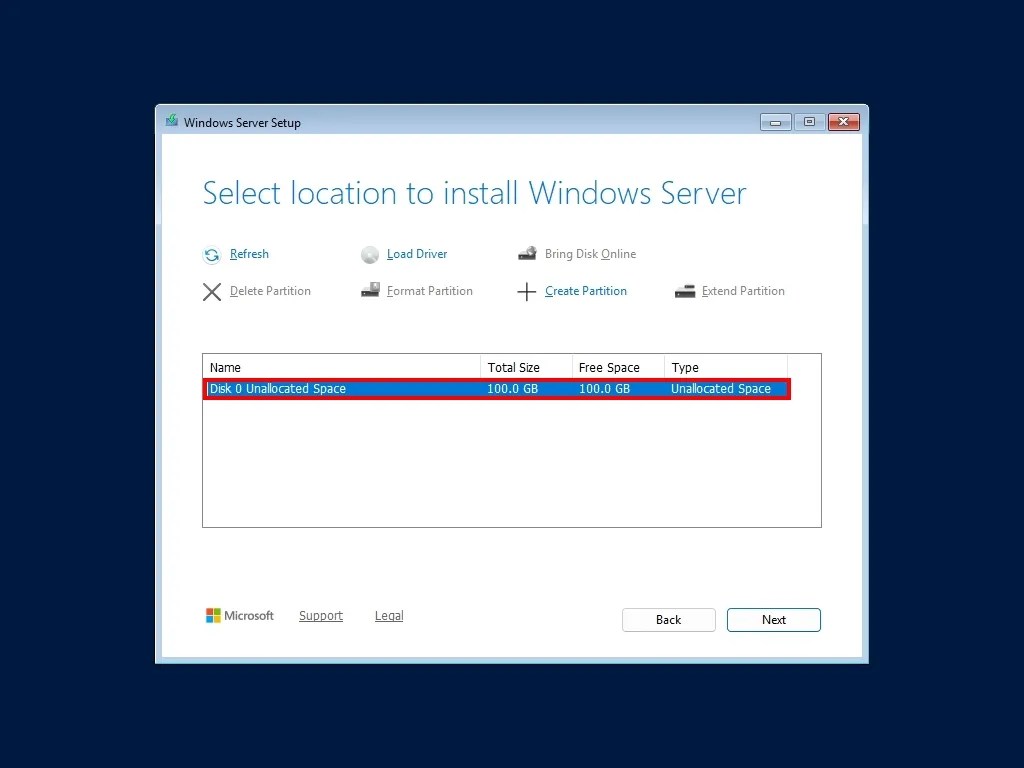

13. Select the hard drive (Drive 0 Unallocated Space) to install Windows Server 2025.



    Quick tip: If this server has another operating system installed, select each partition, click the “Delete” button, then select the unallocated space to continue the installation.

14. Click the Next button.

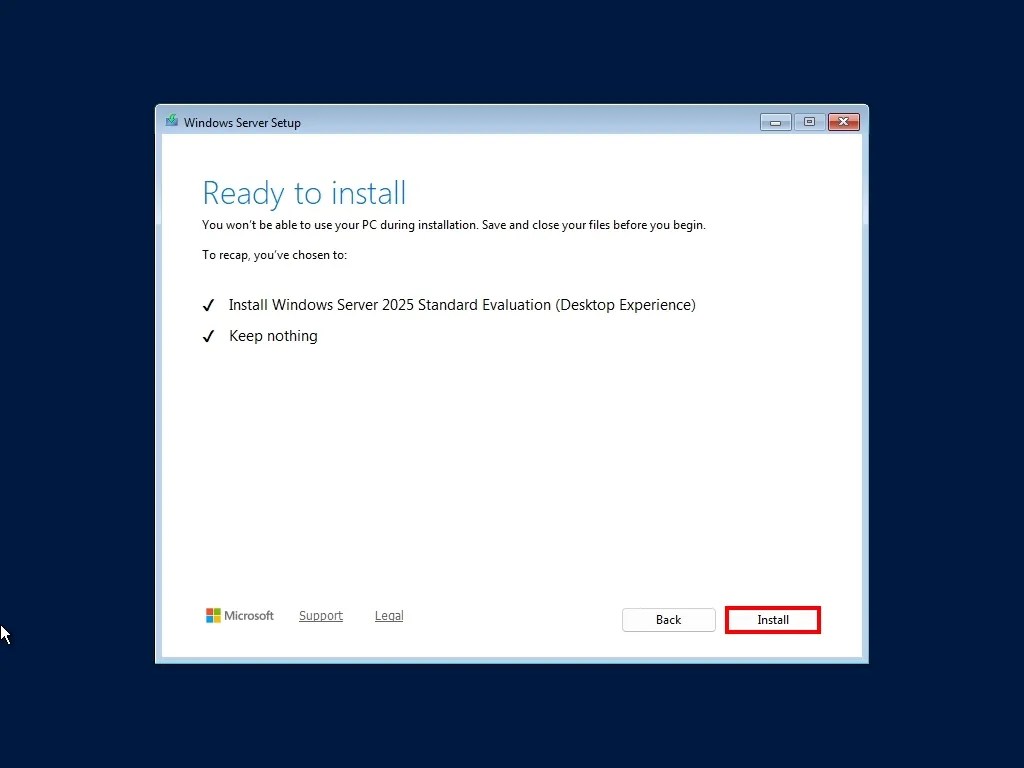

15. Click the Install button.



16. Confirm a complex password for the default Administrator account.



17. Click the Finish button.

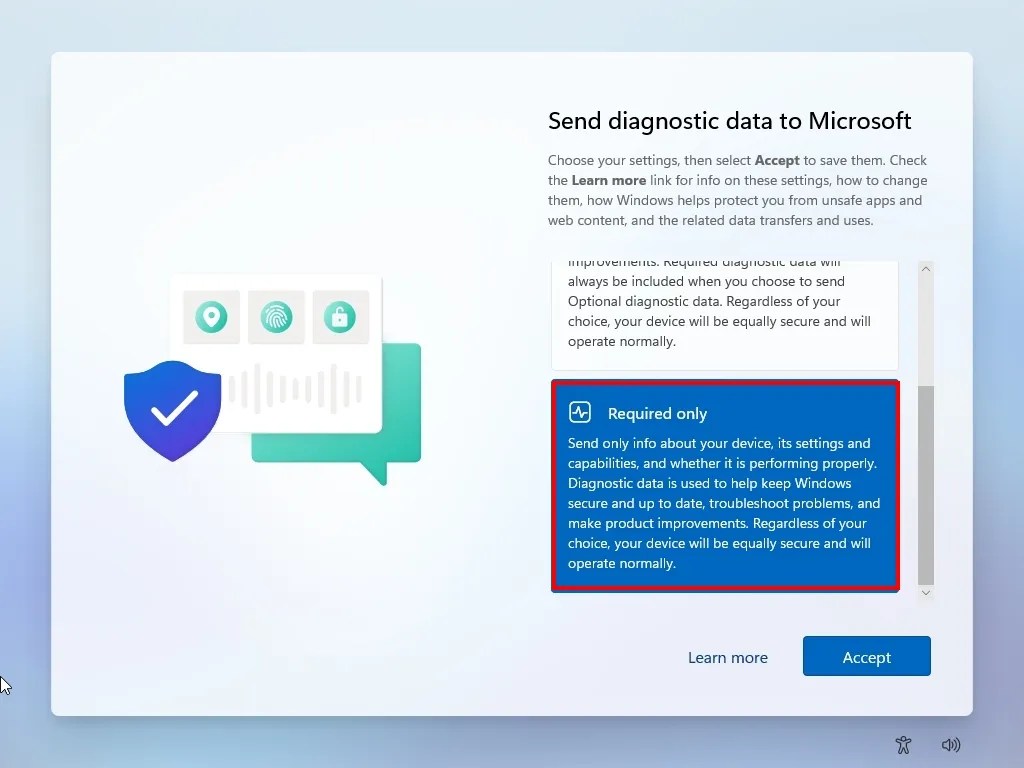

18. Choose the Required only option for the diagnostic configuration.



19. Click the Accept button.

After you complete the steps, the Windows Server will continue with the setup.

Server Decode’s Take

If you’re setting up Windows Server 2025, I still think the choice between Desktop Experience and Server Core comes down to how you plan to manage the server long term. For most home labs, small businesses, and first-time administrators, I would lean toward Desktop Experience because it removes a lot of friction during deployment and troubleshooting. Having direct access to the graphical tools can save time when you’re trying to get services running quickly.

That said, Microsoft has been pushing administrators toward command-line and remote management for years, and Server Core remains the better choice when security, performance, and lower maintenance are the priorities. In my experience, organizations that invest the time to learn PowerShell and modern management tools usually end up with a more efficient server environment.

The one decision I would make carefully is the installation type itself. Since you can’t switch between Core and Desktop Experience after setup without reinstalling the operating system, it’s worth thinking through your management requirements before clicking Install.

Which installation option do you prefer for Windows Server 2025, Desktop Experience or Server Core? Let me know in the comments.
